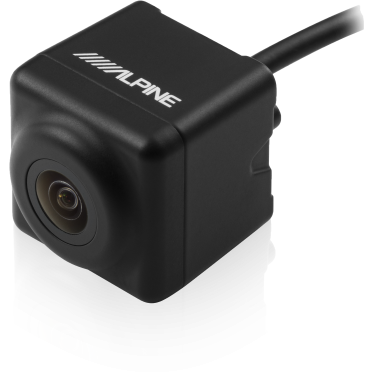

Alpine HCE-C2600FD Multi-View Front Camera

The HCE-C2600FD front view camera is compact and connects directly into the dedicated camera input on compatible Alpine Advanced Navigation Stations. Alpine’s front view camera solution provides better visibility not only further in front of you, but even when coming out of ‘blind’ alleys or around obstructed corners. This makes manoeuvring your vehicle easier, increases overall safety and awareness. Additionally, this camera combined with the HCE-C2100RD Rear View Camera can increase your situational awareness phenomenally while 4WDing!

Featuring enhanced picture quality and wider viewing angle, the HCE-C2600FD also provides automatic image adjustment with day and night mode ensuring the picture is bright and clear. Plus, the included 3 metre extension cable and mounting plate will suit installation into almost any vehicle application.

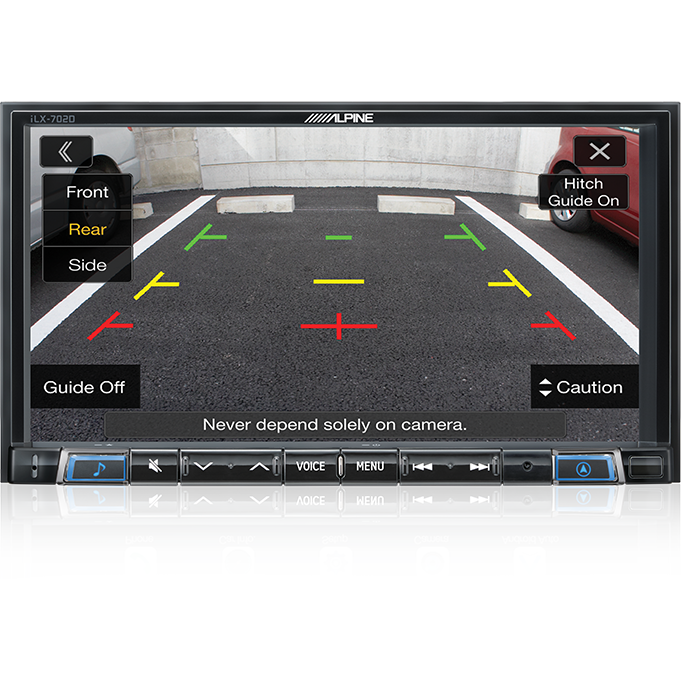

Additionally, Multi-View provides a selection of viewing modes. Corner view splits the screen so you have a clearer view of both sides in front of the vehicle. Ground view is convenient for parking, enabling you to avoid various obstacles in front of your car. Front view allows you a clear panoramic view in front of your vehicle, from a lower and more forward angle than your drivers seat.

General

High Dynamic Range (HDR) Rearview Image
Direct Camera Connection
Vehicle Reverse Signal Synchronization
Multi View Angle Selection: Rear View [Back], Panorama View [Panorama], Ground View [Top], Corner View [Corner]
For use with Alpine monitors with touch-screen operation

Camera

Mirror Image Output
Color CMOS Image Sensor
Automatic Exposure Adjustment
Automatic White Balance Adjustment
Internal Synchronization

Dimensions

Chassis Size (W x H x D) mm : 23.6 mm x 23.6mm x 25.8mm

General

Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
Ground Type: Negative Ground
Power Consumption: 1.2W (6.0V)

Camera

Output Image: Mirror image, CVBS (NTSC Video signal), for 16:9 wide-screen
Image Output Impedance: 75 Ohms (1Vp-p)
Image Sensor: 1/4″ Type Color CMOS Image Sensor, Aspect Ratio 4:3
Effective Number of Pixels: 1280 (horizontal) x 960 (vertical) approximately 1.2 Mega pixels
Lens Focal Length: f=1.27mm
Lens Brightness: F=1.8
Angle of Field: Horizontal = 180° , Vertical = 125°
Resolution (Horizontal. Center Area): 330 TV Lines
Operating Temperature: -30°C – +70°C
Illumination Range: Approximatly 1.5Lx to 100kLx
Weight: 32g (including cable but not including bracket and screw)
