Features
Tuner
Memory Presets: Preset Stations (18 Total; 6 Stations for each band)
Memory: Auto Memory
BLUETOOTH®
Built-in BLUETOOTH® Module
Wide Band Speech Technology
HFP (Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Advanced BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Phone Book: Phone Book Synchronisation
Device Name Display
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF (Touch-Tone) Function
Signal Strength Indicator
Battery Level Indicator
Menu Language Selection: 4 Languages
Made for iPhone®
Music Playback
Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
Alphabet Search
Artwork Display
Direct Up / Down: Playlist / Artist / Album / Genre / Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery Charging
Connectivity

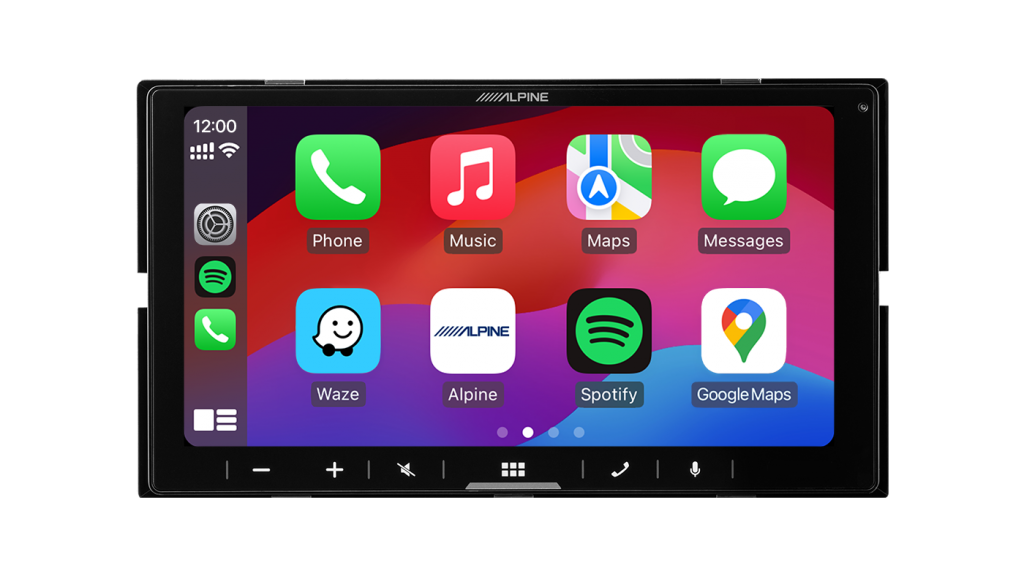

Works with Apple CarPlay (requires CarPlay enabled iPhone)
Works with Android Auto (Requires Android Auto enabled smartphone)
USB Media Connection
USB Connection: USB Extension Cable Included
Music Playback: FLAC/MP3/WMA/AAC/WAV compatible
Video Playback: MP4/AVI/WMV/MOV compatible
File / Folder Name Search
Folder Up / Down
M.I.X. Random Play
Repeat
Sound Tuning
Subwoofer Level Adjustment
Subwoofer Phase Select
4V High Voltage PreOut
5 Preset EQs
9-band Parametric Equaliser front/rear/subwoofer
5 Channel Digital Time Correction
Digital Crossover Setting
MediaXpander HD
Easy, Step-by-Step Sound Customisation
General
6.75” Anti-Glare Capacitive Touch Display
5-Color Key Illumination (Red, Green, Blue, Amber, White)
Customisable Home Screen (Add your own background image)
Compatible with most factory steering wheel audio controls (adapter required)
Lighting Link Control (compatible with Alpine PrismaLink subwoofers)
Shallow Chassis Design (6.1cm depth)
Dual Swipe interface technology (excludes Apple CarPlay and Android Auto)
3 PreOuts (4V, Front / Rear / Subwoofer)

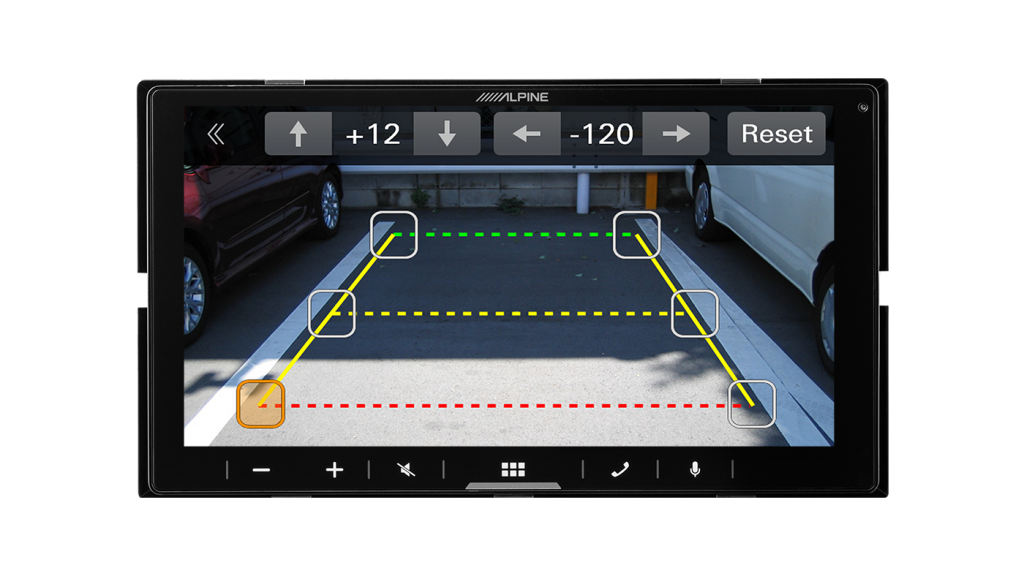

Dual Camera Input via RCA (Rear and side or front cameras)
Clock
Auto Dimmer
Firmware Updatable
Power Antenna Lead
Remote Turn-On
Specifications
3-AMP USB Charging and Input Port
9-Band Parametric EQ / Crossover
40W x 4ch Built-in Amplifier
3 PreOuts (4 Volts)
PowerStack ready compatible with KTA-450 Power Pack Amplifier (sold separately)
Screen
Screen Size: 7″ (800 x 3 x 480)
LCD Type: Touchscreen (Capacitive) LCD
Operation System: a-Si TFT active matrix
Number of Picture Elements: 1,152,000 pixels
Illumination System: LED Backlighting
Effective Number of Picture Elements: 99.99%
Max Power Output Ratings
Power Output: 4 x 16W RMS
FM Tuner
Tuning Range: 87.7 – 107.9 MHz
Mono Usable Sensitivity: < 9 dBu (75 ohms)
50dB Quieting Sensitivity: < 5 dBu (75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW(AM) Tuner
Tuning Range: 530 – 1,710 kHz
Usable Sensitivity (IEC Standard): 34 dBu
USB
USB Requirements: USB 2.0
Max. Power Consumption: 1,000 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
FLAC Decoding
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at 1kHz): 85 dB
BLUETOOTH®
BLUETOOTH® Version: Bluetooth V4.2
Output Power: +4 dBm Max. (Power class 2)
HFP (Hands-Free Profile)
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
Sound Tuning
Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
HighPassFilter: 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 Hz
HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
HighPassFilter (Gain): -12 to 0 dB
LowPassFilter: 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 Hz
LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
LowPassFilter (Gain): -12 to 0 dB
6ch Time Correction: 0.0 – 9.9ms (0.1ms step)
Parametric Equalizer Band 1: 50 Hz
Parametric Equalizer Band 2: 80 Hz
Parametric Equalizer Band 3: 125 Hz
Parametric Equalizer Band 4: 200 Hz
Parametric Equalizer Band 5: 315 Hz
Parametric Equalizer Band 6: 500 Hz
Parametric Equalizer Band 7: 800 Hz
Parametric Equalizer Band 8: 1.25k Hz
Parametric Equalizer Band 9: 2k Hz
Parametric Equalizer Band 10: 3.15k Hz
Parametric Equalizer Band 11: 5k Hz
Parametric Equalizer Band 12: 8k Hz
Parametric Equalizer Band 13: 12.5k Hz
General
Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 4 V / 10k ohms
Operating Temperature: -4°F to +140°F (-20°C to +60°C)
Maximum Power Output: 16W RMS x 4
Audio Output Level
Preout (Front, Rear): 4V/10k ohms (max.)
Preout (Subwoofer): 4 V/10k ohms (max.)
Weight: 0.9 kg
Chassis Size
Width: 178mm
Height: 100mm
Depth: 68mm
Due to continuous product improvement, specifications and design are subject to change without notice.
The LCD panel is manufactured using an extremely high precision manufacturing technology. Its effective pixel ratio is over 99.99%. This means that there is a possibility that 0.01% of the pixels could be either always ON or OFF.
