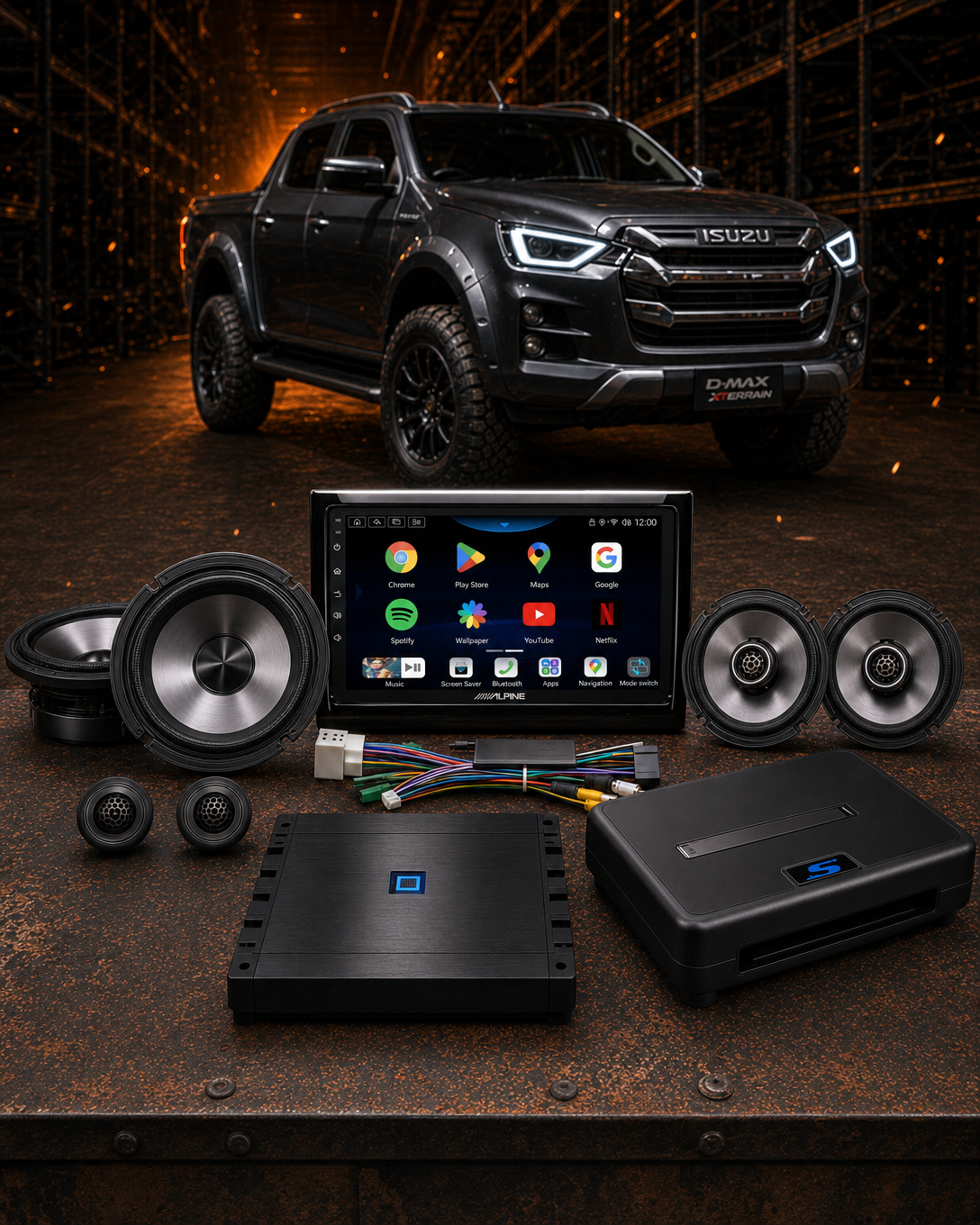

D-Max 2020–2024 Stage 2 Full System DIY Kit — Everything Provided

BUILT FOR THE BUSH. ENGINEERED FOR SOUND.

The Isuzu D-Max Full System Bundle is a complete audio overhaul designed for serious off-road touring. Whether you're deep in the outback, crawling through creek crossings, or hammering corrugations on a red dirt highway — this system delivers crystal-clear sound that cuts through road noise, engine rumble, and everything the bush throws at you.

This is a comprehensive DIY kit. We provide everything you need to get the job done — head unit, fascia, speakers, spacers, wiring, amp, and sub. Please note: This is NOT a plug-and-play system and is NOT pre-wired. You will need to route cables, terminate connections, and install the components yourself. It's built for those who want to roll up their sleeves and build a proper, custom-level audio system in their D-Max.

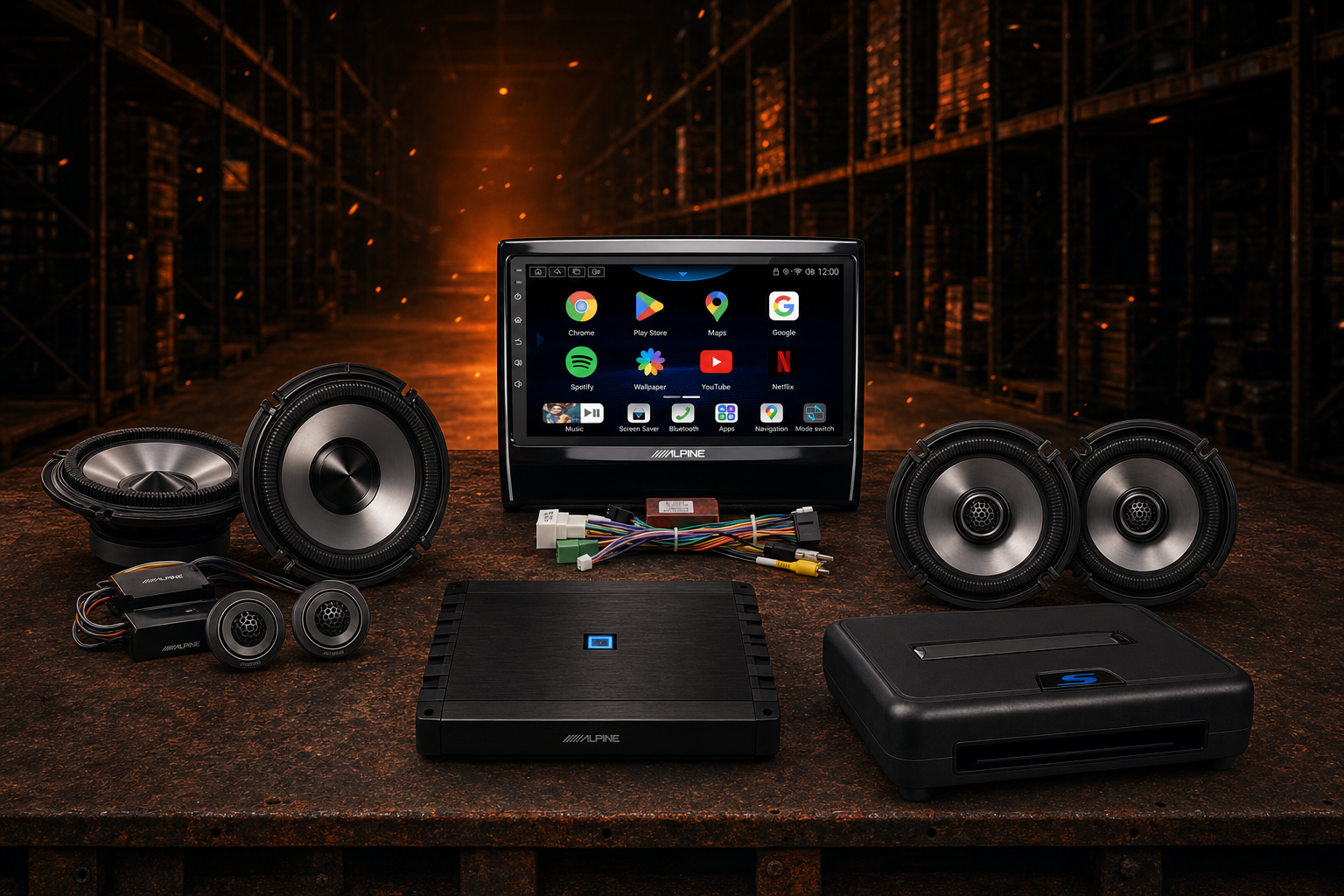

WHAT'S IN THE BOX

Alpine INE-AX809 — 9" Wireless CarPlay Head Unit Kit

Vehicle-specific kit with 9-inch HD display in a glossy black D-Max fascia. Wireless Apple CarPlay & Android Auto. Hi-Res Audio and LDAC technology. Built-in navigation with Google Maps. Alpine OS for lightning-fast response. 48-band parametric EQ and Bass Engine SQ for precision tuning. Retains factory reverse camera and steering wheel controls. Includes custom D-Max fascia and all required wiring harnesses.

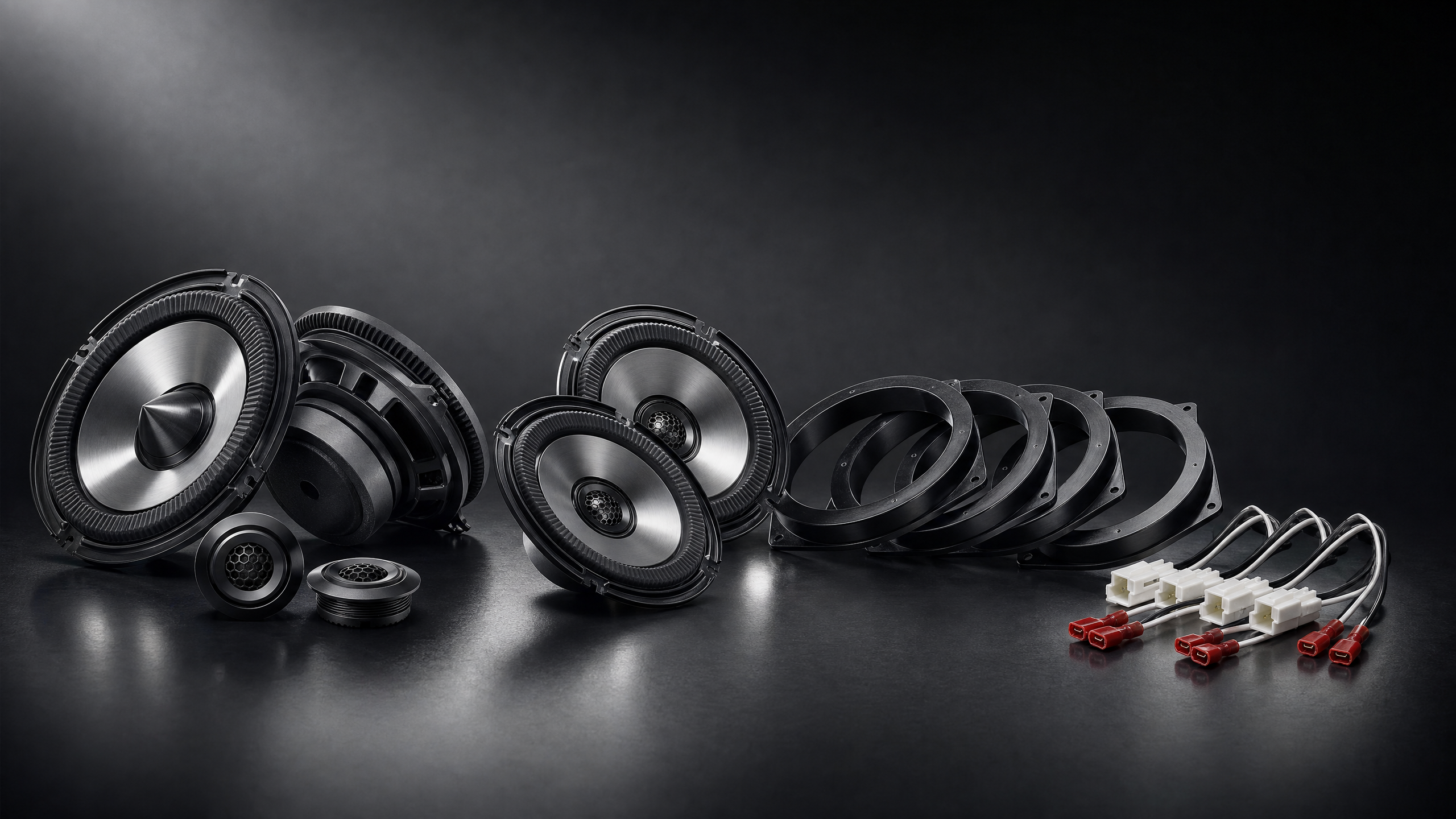

Alpine BassRev Speaker Kit — Front & Rear

Front: Alpine BRV-S65C component speakers. Purpose-built for more punch, bass, and clarity. 1" soft-dome tweeters with neodymium magnets deliver detailed highs that cut through cabin noise.

Rear: Alpine BRV-S65 coaxial speakers for full-cabin sound. Same BassRev technology — punchy mid-bass and crisp highs from a single drop-in unit.

Included Hardware: 4x vehicle specific speaker adaptors and 4x vehicle specific plugs for a clean installation into the factory locations.

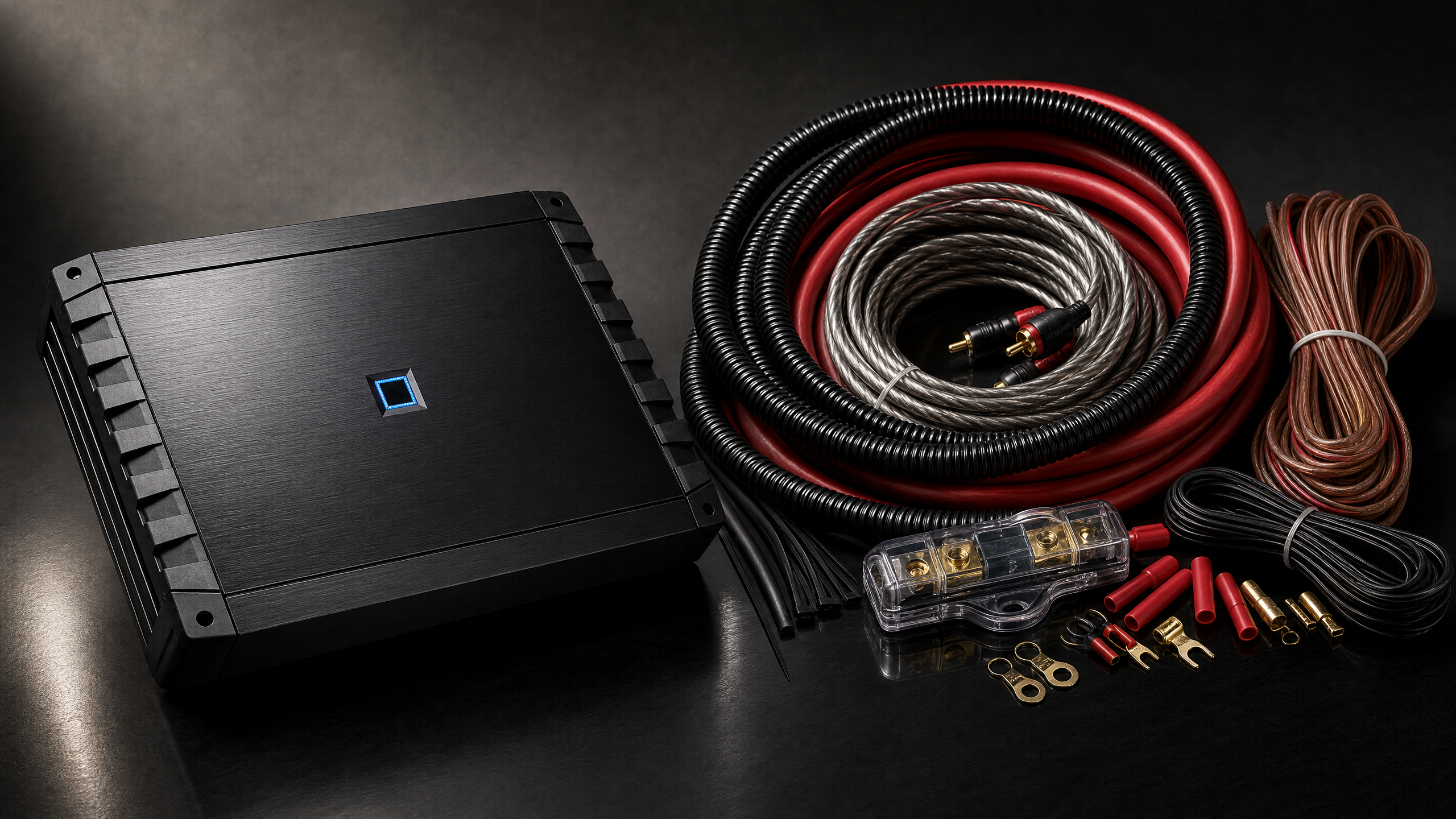

Alpine S2-A55V — 5-Channel Amplifier & Wiring Kit

Compact, efficient, and powerful. The Alpine S2-A55V drives the entire system — front speakers, rear speakers, and subwoofer — from a single unit. Clean, undistorted power even at full volume on rough terrain. Mounts discreetly under a seat or behind a panel. Includes a complete amplifier wiring kit with power, ground, RCA, speaker wire, and fusing.

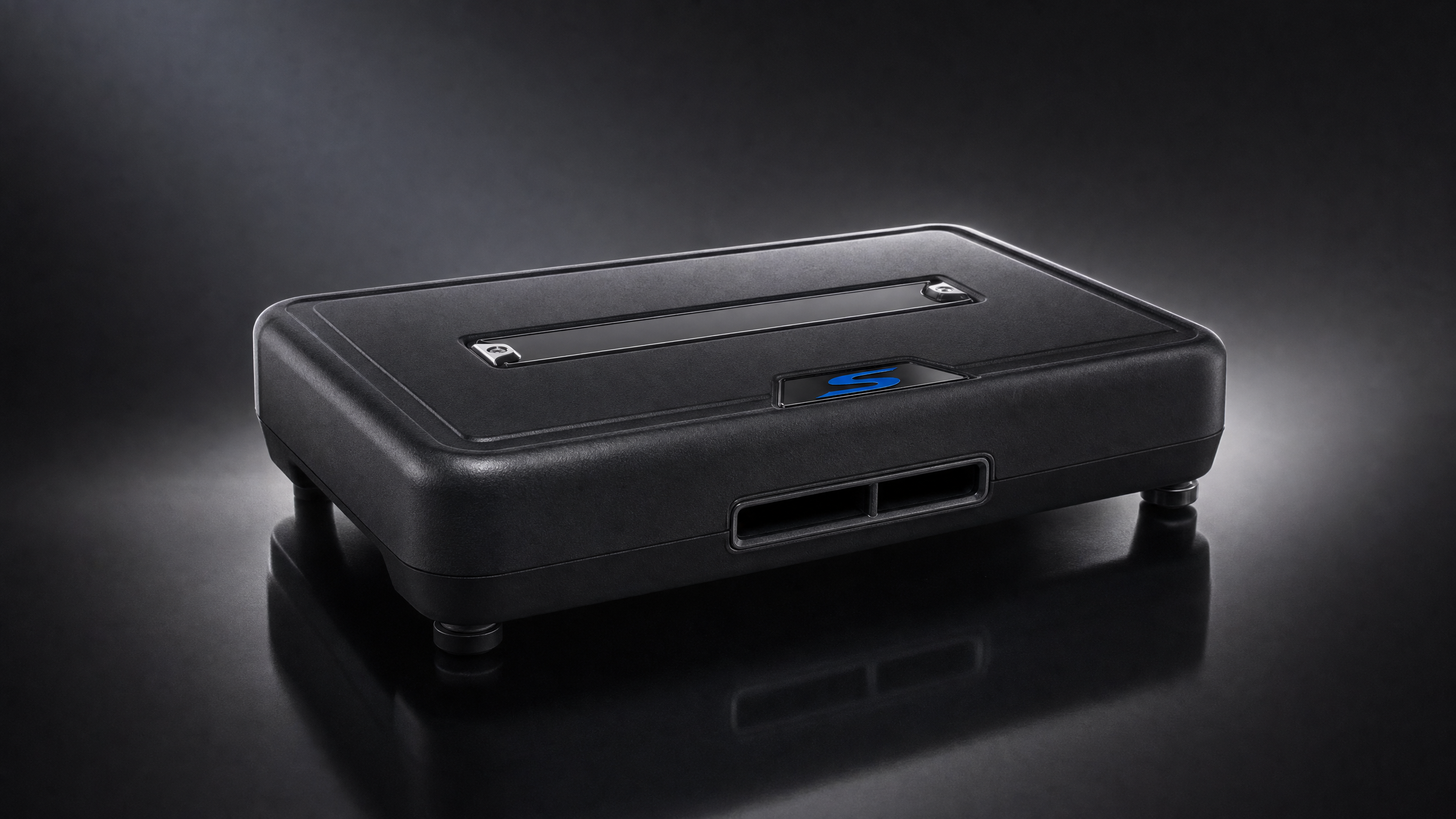

Alpine SS-SB10 — Shallow Subwoofer Enclosure

Deep, controlled bass from the Alpine SS-SB10 sealed enclosure subwoofer. Tight and punchy — exactly what you want on corrugated roads. Compact, low-profile design fits behind or under seats without eating into cargo space.

SYSTEM SPECIFICATIONS

TOOLS YOU'LL NEED

Split loom / cable conduit also recommended for protecting wiring runs.

WHY THIS BUNDLE

ADD HEMA MAPS — +$500

Upgrade your Alpine head unit to the HEMA Edition and unlock Australia's most trusted off-road navigation — right on your dash. 700,000+ km of verified tracks. 550,000+ km of unsealed roads. Field-checked by the Hema Map Patrol team.

Explorer Maps — Pin-point accurate turn-by-turn across all terrain

3D Explorer Maps — Elevation lines and track difficulty at a glance

Seamless Navigation — Auto-switches between on-road and off-road

Campsites & POIs — Facilities, amenities, and phone numbers at your fingertips

Select the "With HEMA Maps" variant above to add this upgrade.

RECOMMENDED ADD-ON

Focal BAM XXXL Sound Deadening — Reduce road noise, rattles, and vibration for a quieter cabin and tighter bass response. Apply to doors, floor, and rear panels for maximum effect. Available separately in our store.

Complete Isuzu D-Max 2020–2024 audio system. Everything you need. Nothing you don't.

Questions? Contact us at sales@ozaudioshop.com
