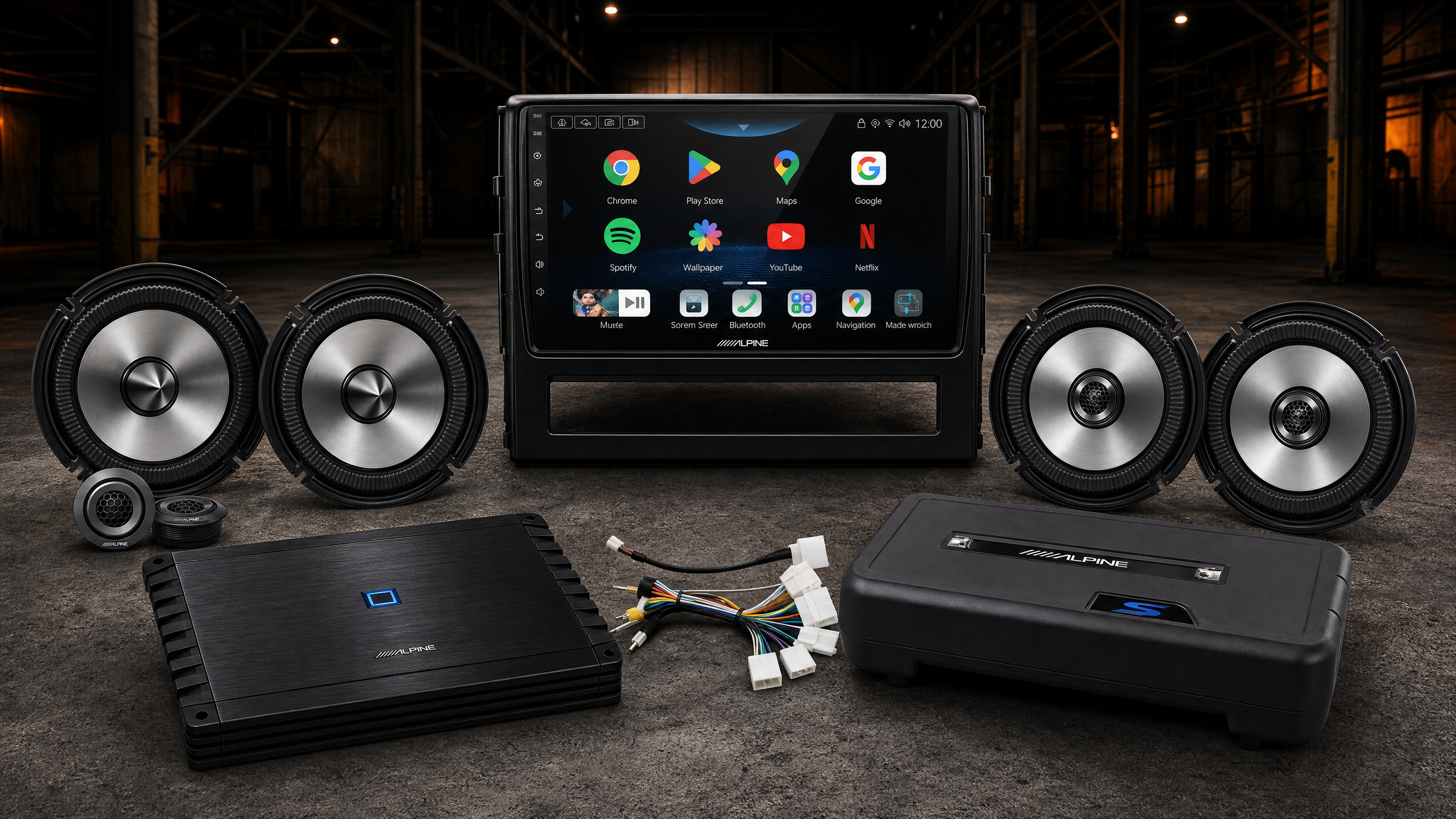

LandCruiser 200 Stage 2 Full System DIY Kit — Everything Provided

$3,120.00 $3,630.00
Year:2008-2014
Package:Standard
Quantity:
LandCruiser 200 Stage 2 Full System DIY Kit

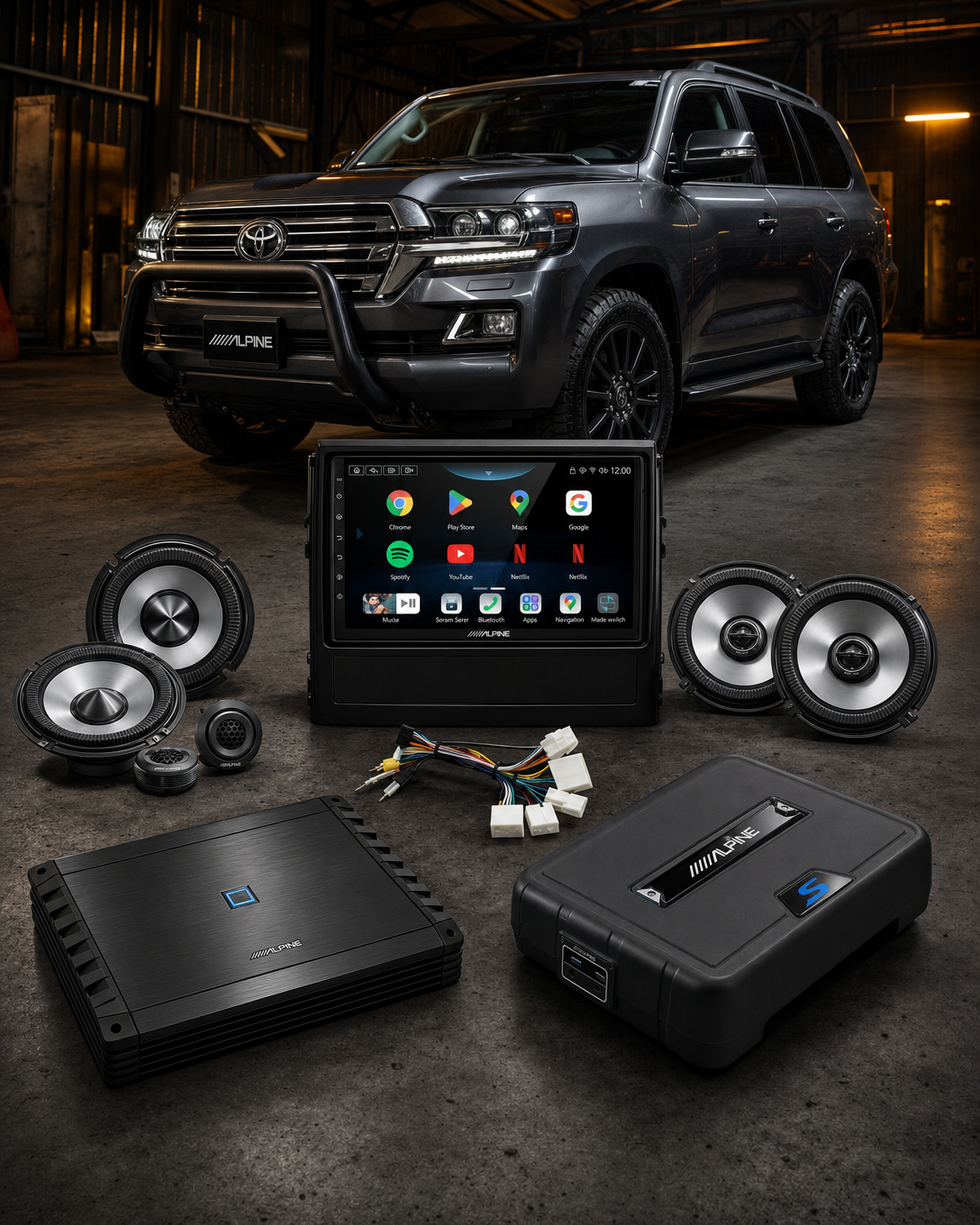

LANDCRUISER 200 STAGE 2 — FULL SYSTEM DIY KIT

Everything you need to completely upgrade your LandCruiser 200 audio system. Premium Alpine components, vehicle-specific head unit fascia, and all installation hardware included.

This is a comprehensive DIY kit. Everything you need is provided.

Basic automotive electrical knowledge and hand tools required.

INSTALL DIFFICULTY

Difficulty Rating 3 out of 5

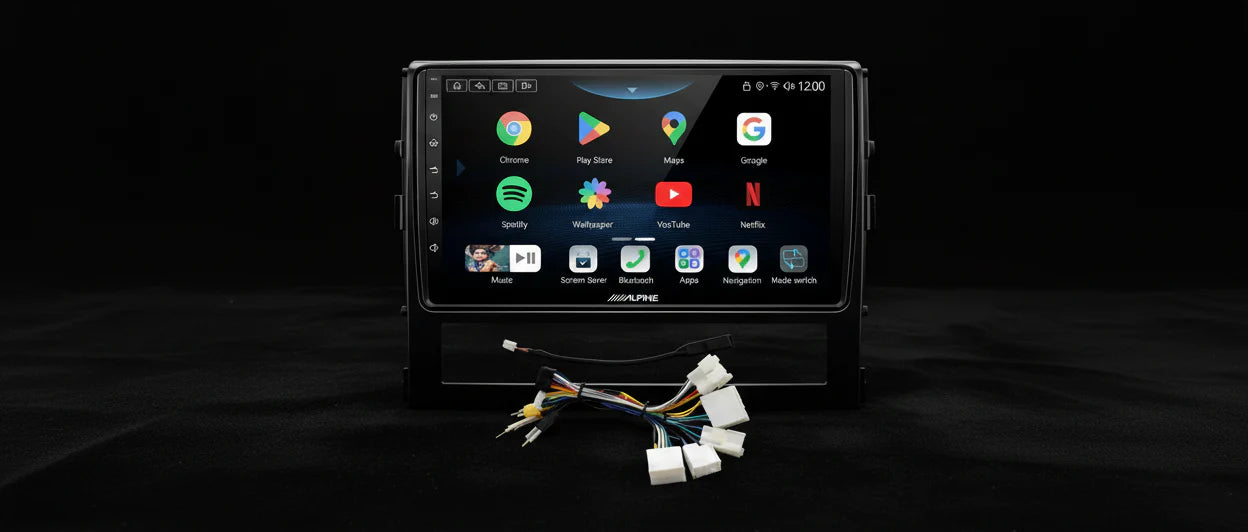

HEAD UNIT — Alpine 9" Wireless CarPlay & Android Auto

Alpine 9 inch Head Unit in LandCruiser 200 Fascia

Vehicle-specific Alpine 9" touchscreen in a purpose-built LandCruiser 200 fascia. Wireless Apple CarPlay, Android Auto, built-in navigation, Bluetooth streaming, HDMI input, and full app support including Spotify, YouTube, Netflix, and Google Maps. Retains factory steering wheel controls and reverse camera.

Includes vehicle-specific wiring harness, CAN-bus interface module, and all mounting hardware. Available for 2008–2014 and 2015–2021 models.

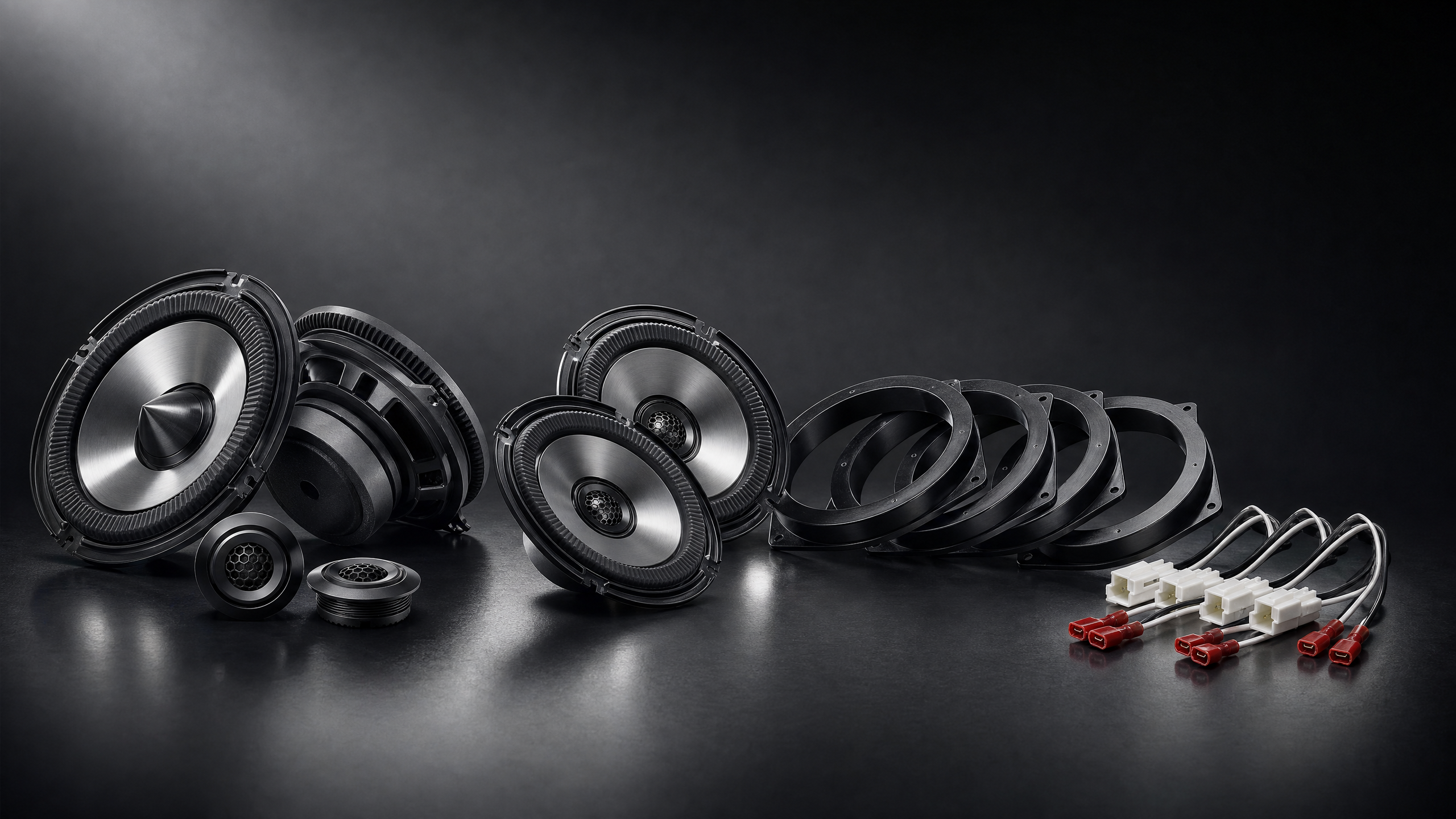

SPEAKERS — Alpine BassREV Front Components + Rear Coaxials

Alpine BRV-S65C Components and BRV-S65 Coaxials with Spacers and Plugs

Front — Alpine BRV-S65C 6.5" Component System: Separate woofers and tweeters for precise staging and imaging. 100W RMS per pair, BassREV cone technology for deep, controlled bass response.

Rear — Alpine BRV-S65 6.5" Coaxial System: Full-range coaxials with integrated tweeter. 100W RMS per pair, matched tonality with the front components for seamless front-to-rear fill.

Included: 4x vehicle specific speaker adaptors and 4x vehicle specific speaker plugs — direct fit, no cutting or splicing required for speaker installation.

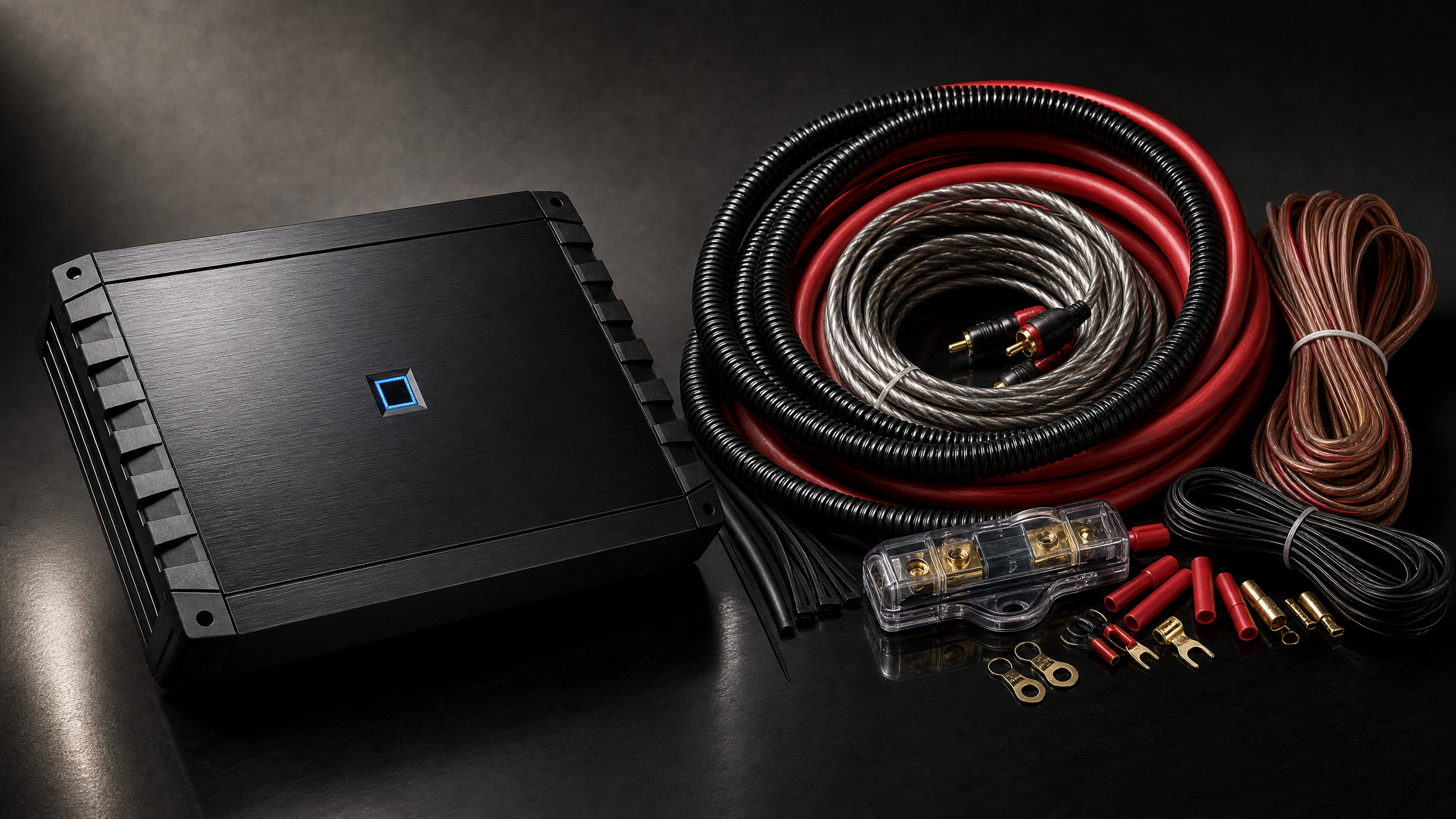

AMPLIFIER — Alpine S2-A55V 5-Channel Digital

Alpine S2-A55V Amplifier with Full Wiring Kit

Compact 5-channel digital amplifier powering the entire system from a single unit. 75W x 4 channels for speakers + 300W x 1 channel bridged for the subwoofer. Ultra-efficient Class-D design runs cool and fits in tight spaces.

Full wiring kit included: 8-gauge power cable, ground cable, remote turn-on wire, RCA signal cables, inline fuse holder, speaker wire, ring terminals, and all connectors.

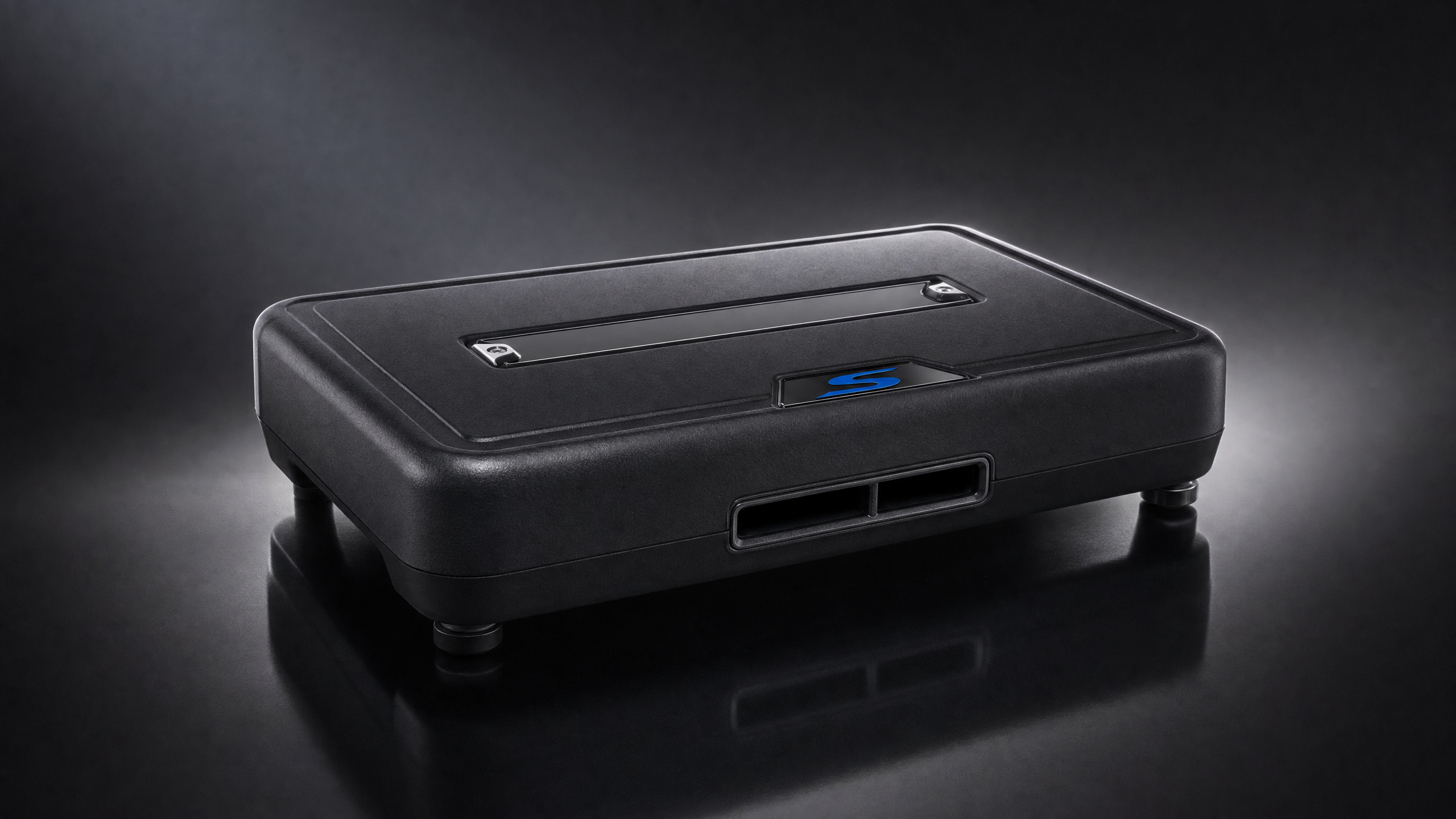

SUBWOOFER — Alpine SS-SB10 Shallow Mount Enclosure

Alpine SS-SB10 Shallow Subwoofer Enclosure

Purpose-built shallow-mount 10" subwoofer in a sealed enclosure. Designed to fit under rear seats or in tight cargo areas without sacrificing boot space. Delivers punchy, controlled bass that fills the cabin.

Ultra-low profile design (under 100mm tall). Pre-loaded and ready to connect — just wire to the amp's subwoofer channel.

OPTIONAL ADD-ON: HEMA MAPS 4WD NAVIGATION

Add Australia's most trusted off-road navigation to your head unit. Full HEMA Maps subscription with thousands of 4WD tracks, campsites, fuel stops, and points of interest — all displayed on your 9" Alpine screen. Select the "With HEMA Maps" variant at checkout.

RECOMMENDED ADD-ON: FOCAL BAM XXXL

Take your install to the next level with Focal BAM XXXL sound deadening. Reduces road noise, eliminates panel vibration, and dramatically improves bass response and clarity. Recommended for all door speaker locations.

SPECIFICATIONS

Head Unit Alpine 9" | Wireless CarPlay & Android Auto | HDMI | Built-in Nav | Bluetooth
Front Speakers Alpine BRV-S65C | 6.5" Components | 100W RMS | BassREV Technology
Rear Speakers Alpine BRV-S65 | 6.5" Coaxials | 100W RMS | BassREV Technology
Amplifier Alpine S2-A55V | 5-Channel | 75W x 4 + 300W x 1 | Class-D Digital
Subwoofer Alpine SS-SB10 | 10" Shallow Mount | Sealed Enclosure | Under 100mm Height
Speaker Adaptors 4x Vehicle specific speaker adaptors + 4x Vehicle specific speaker plugs
Wiring Kit Full 8-gauge amp wiring kit | Power, ground, remote, RCA, speaker wire, fuse

WHY THIS BUNDLE

Complete DIY Kit Every component, adaptor, and cable included — nothing else to buy
Everything Provided Head unit, speakers, amp, sub, wiring, adaptors, plugs — all in one box
Vehicle Specific Purpose-built fascia and adaptors for LandCruiser 200 (2008–2014 and 2015–2021)
Premium Components All Alpine — matched, tuned, and designed to work together
Ships Australia-Wide Fast shipping from Perth, WA to your door

TOOLS YOU'LL NEED

✓ Wire strippers / crimpers

✓ Trim removal tools (plastic pry set)

✓ Phillips head screwdriver

✓ Socket set (10mm, 12mm, 14mm)

✓ Step drill bit (for speaker rivet holes only)

✓ Stanley blade

✓ Electrical tape / heat shrink

✓ Cable ties (zip ties)

✓ Panel clip remover

✓ Soldering iron (optional)

Optional but recommended: RCA signal tester, 12V test light, split loom / cable conduit for protecting wiring runs.
